Air Shower

Description

Air Showers are self-contained chambers installed at entrances to cleanrooms and other controlled environments. They minimize particulate matter entering or exiting the clean space. Personnel and materials entering or exiting the controlled environment are “scrubbed” by high velocity HEPA-filtered air jets with velocities of 20-22m/s. Contaminated air is then drawn through the base within the unit, filtered and recirculated.

Air showers are various in showering, arranging from single-side, double-side, or top-side or combined, and have different door types, manually-operated door, auto-door and shutter door.

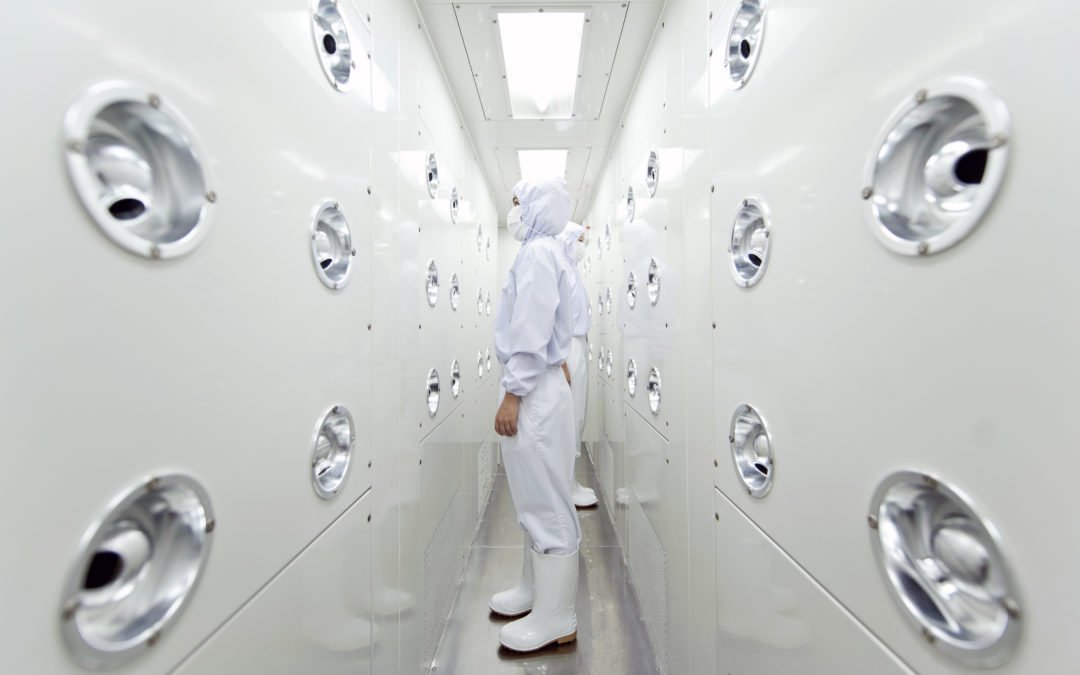

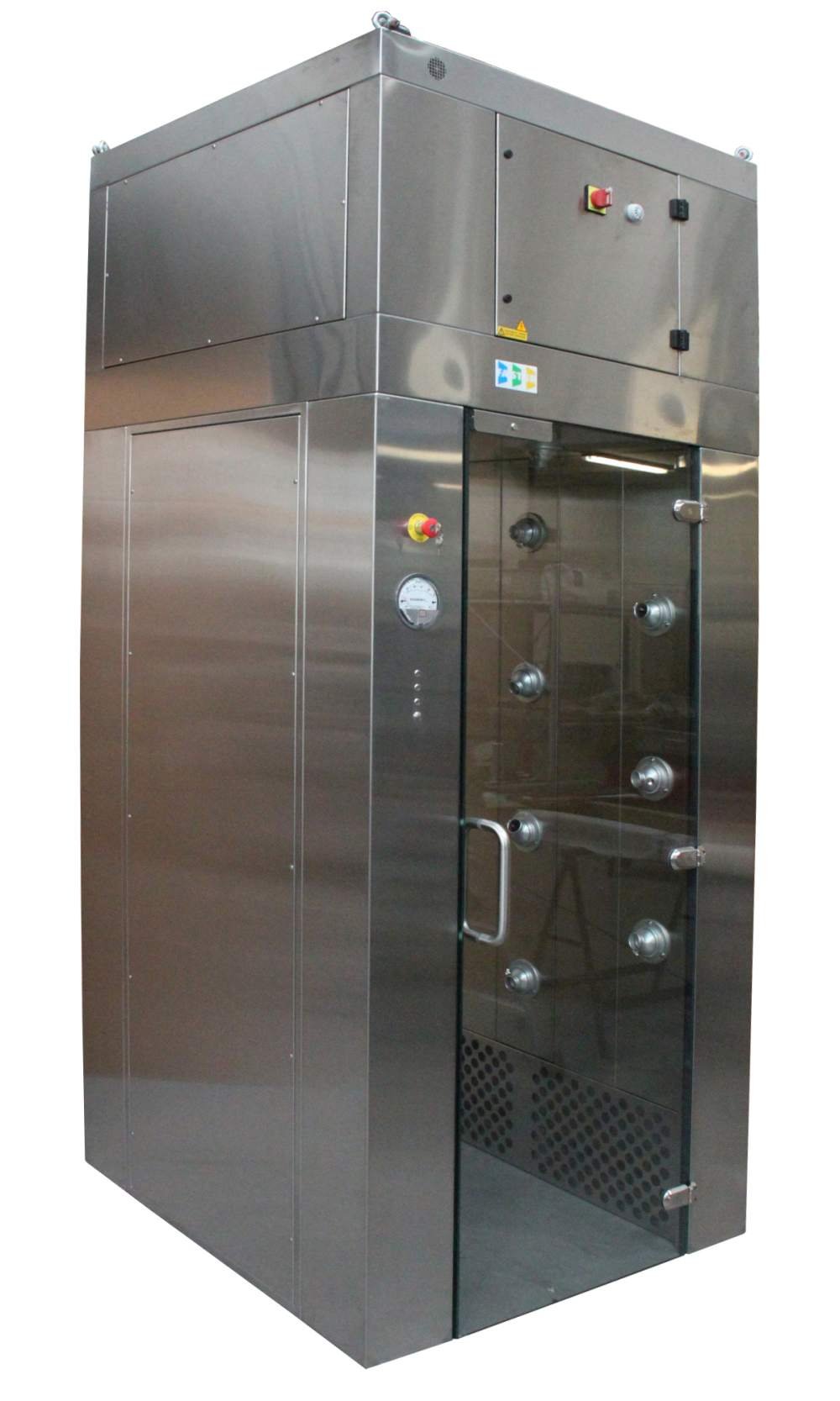

    AIR SHOWER PICTURES

    Technical Parameters

    Model AE-AS800-1P AE-AS800-2P
    Filter Efficiency H13/ H14 >=99.99% (@>=0.3 μm) H13/ H14 >=99.99% (@>=0.3 μm)
    Air Flow (m/s) ≥ 25 ≥ 25
    Shower Time 0-99s (adjustable) 0-99s (adjustable)
    Number of Nozzle 16 32
    Number of Operator 1 2
    Power Supply AC380V,3Φ,50Hz AC380V,3Φ,50Hz
    Consumption (w) 1100 1500
    Body SuS304 plate / Stoving Varnish SuS304 plate / Stoving Varnish
    Door SUS304 plate SUS304 plate
    Overall Dim. (W*D*H) 1200*1000*2100 mm 1200*2000*2100 mm
    Internal Dim. (W*D*H) 800*900*1980 mm 800*1400*1980 mm
    Note The size, showering and door type can be customized.
