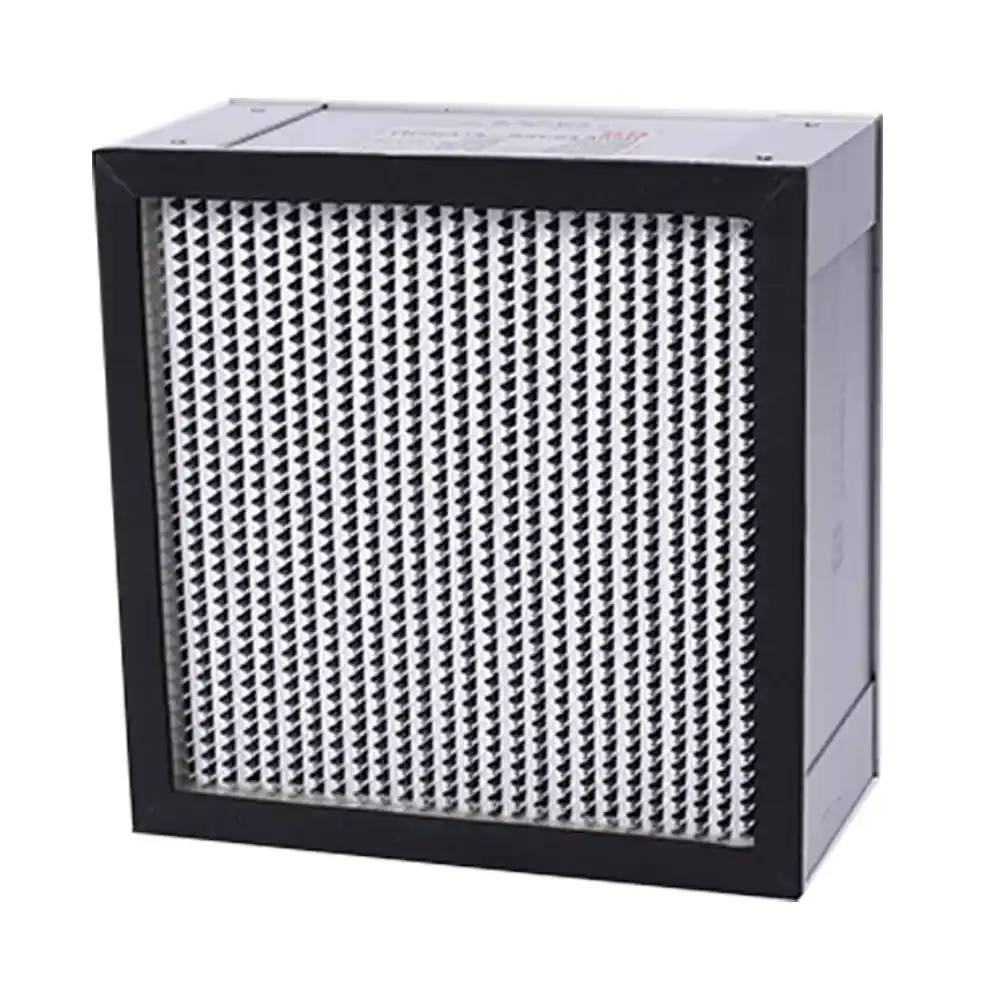

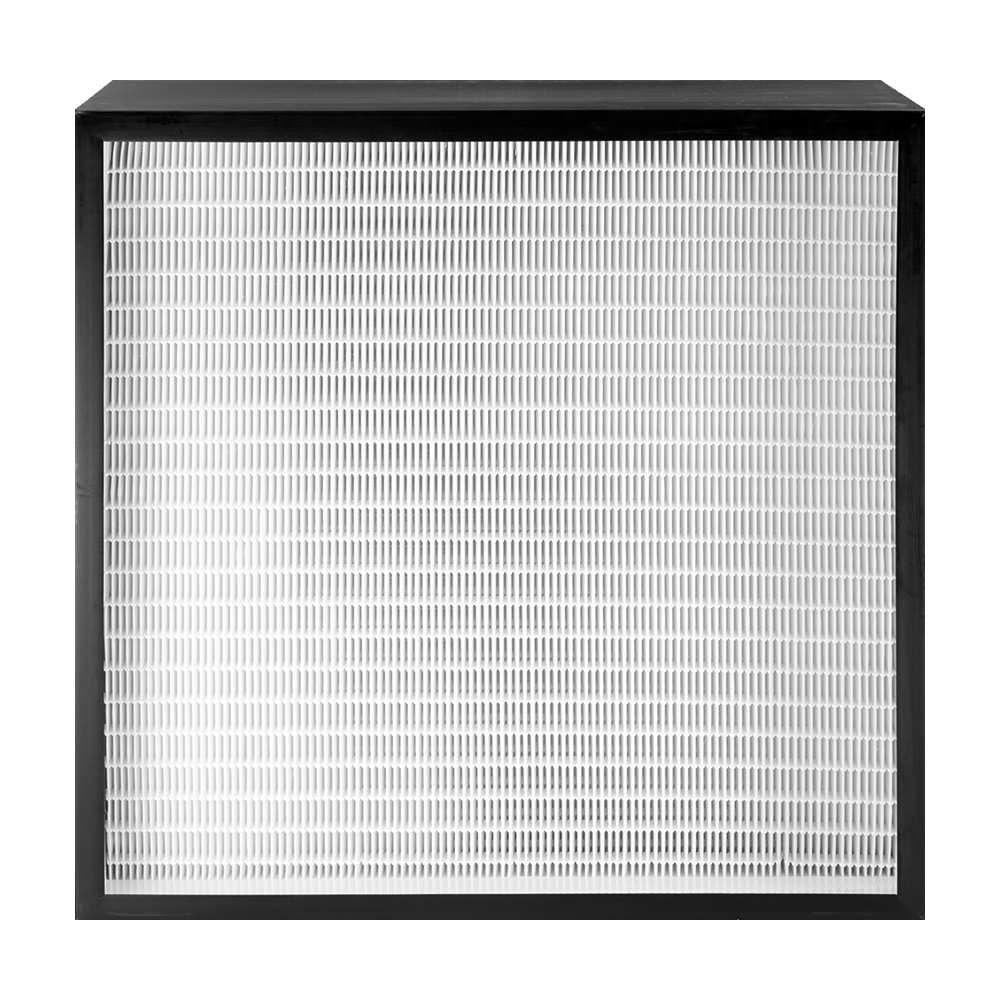

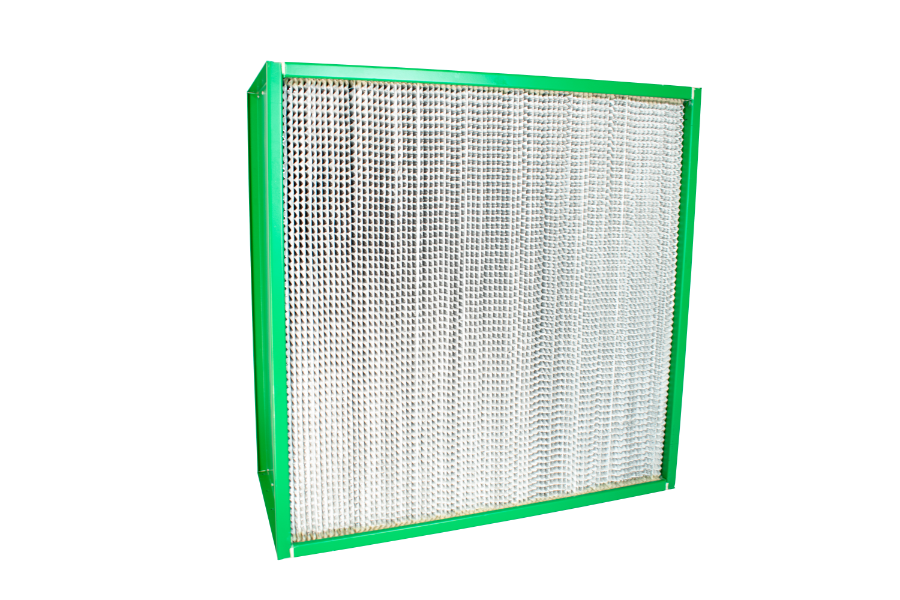

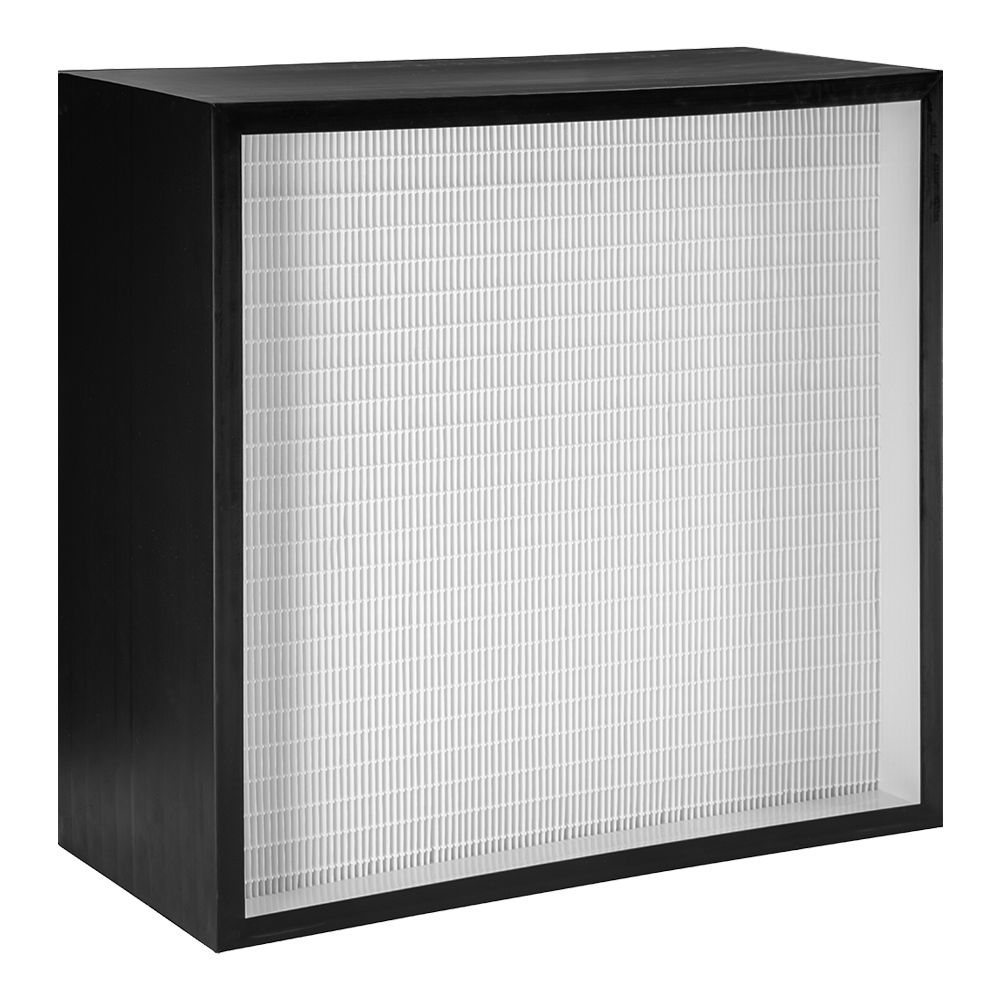

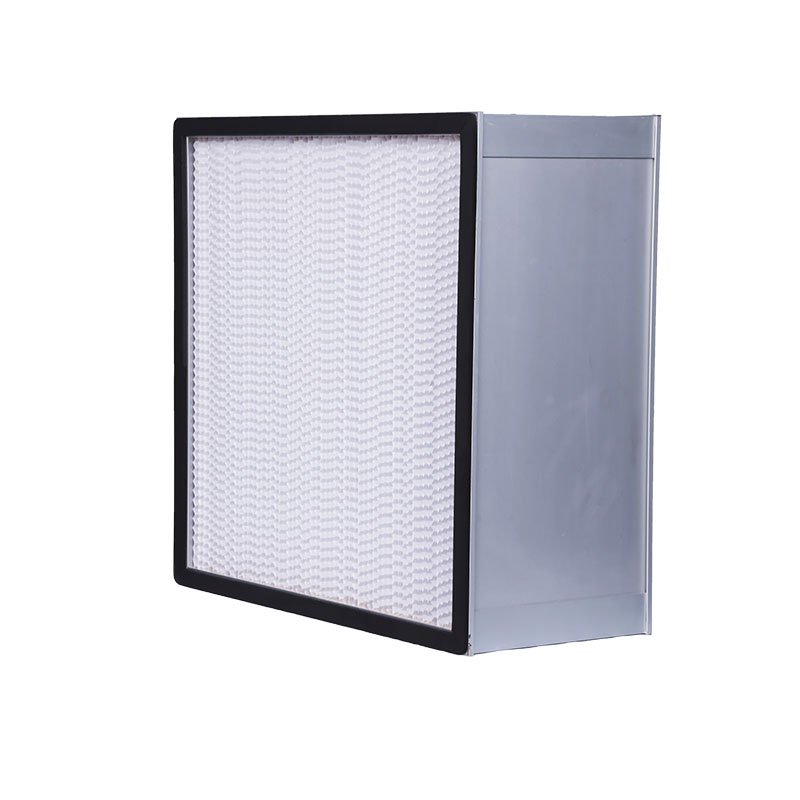

Deep pleat HEPA Filter
Deep Pleat HEPA Filters are high-capacity air filters designed for applications requiring maximum dust-holding capacity and efficiency. With ≥99.99% filtration at 0.3 microns, they are widely used in cleanrooms, pharmaceuticals, hospitals, and HVAC systems.
Description
- ≥99.99% efficiency for particles ≥0.3 microns
- Deep pleat design for higher dust-holding capacity
- Available in HEPA and ULPA grades
- Strong construction with aluminum, galvanized steel (GI), or wooden frames
- PU or rubber gasket for airtight sealing
- Handles higher airflow volumes compared to mini-pleat filters
- Suitable for terminal boxes, air handling units (AHUs), and modular cleanrooms
- Complies with EN 1822, ISO 14644, and GMP standards

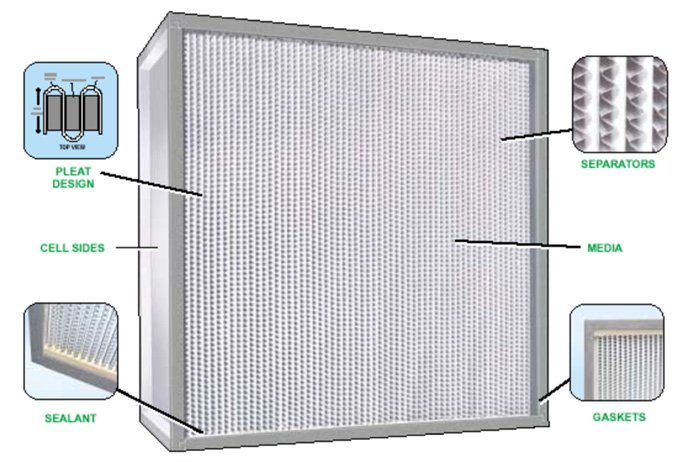

The Deep Pleat HEPA Filter is a high-performance filter designed to provide superior air purification with exceptional dust-holding capacity. With an efficiency of ≥99.99% at 0.3 microns (and ≥99.9995% for ULPA), it ensures the removal of fine dust, allergens, and microorganisms in sensitive environments such as cleanrooms, pharmaceuticals, biotechnology, and hospitals.
Its deep pleat design allows greater airflow handling and longer service life compared to standard mini-pleat filters, making it ideal for high-demand applications. Constructed with aluminum, galvanized steel, or wooden frames, the filter provides durability and stability, while PU or rubber gaskets ensure airtight sealing to prevent leaks.
These filters are used in air handling units (AHUs), terminal HEPA boxes, cleanroom ventilation, and HVAC systems. By complying with EN 1822, ISO 14644, and GMP standards, Deep Pleat HEPA Filters deliver reliable performance for industries that require contamination-free environments.
| Parameter | Specification |
|---|---|
| Product Name | Deep Pleat HEPA Filter |
| Efficiency | ≥99.99% at 0.3 microns (HEPA) / ≥99.9995% (ULPA) |
| Design | Deep pleat for high dust-holding capacity |
| Frame Material | Aluminum, GI (galvanized steel), or wooden frames |
| Seal Type | PU or rubber gasket for airtight sealing |
| Airflow | Handles high airflow volumes |
| Standards | EN 1822, ISO 14644, GMP |
| Applications | Cleanrooms, AHUs, HVAC systems, pharmaceuticals, biotechnology, hospitals |
