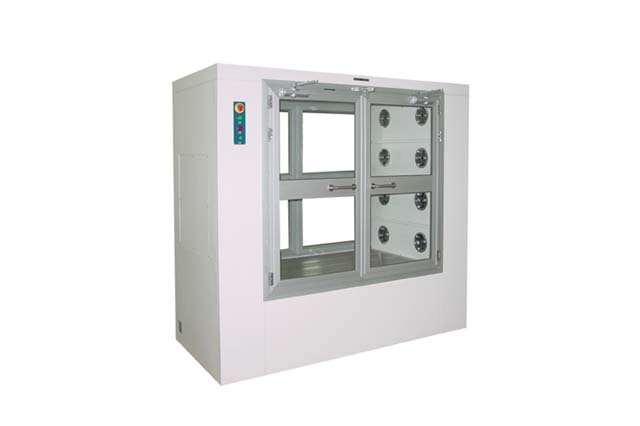

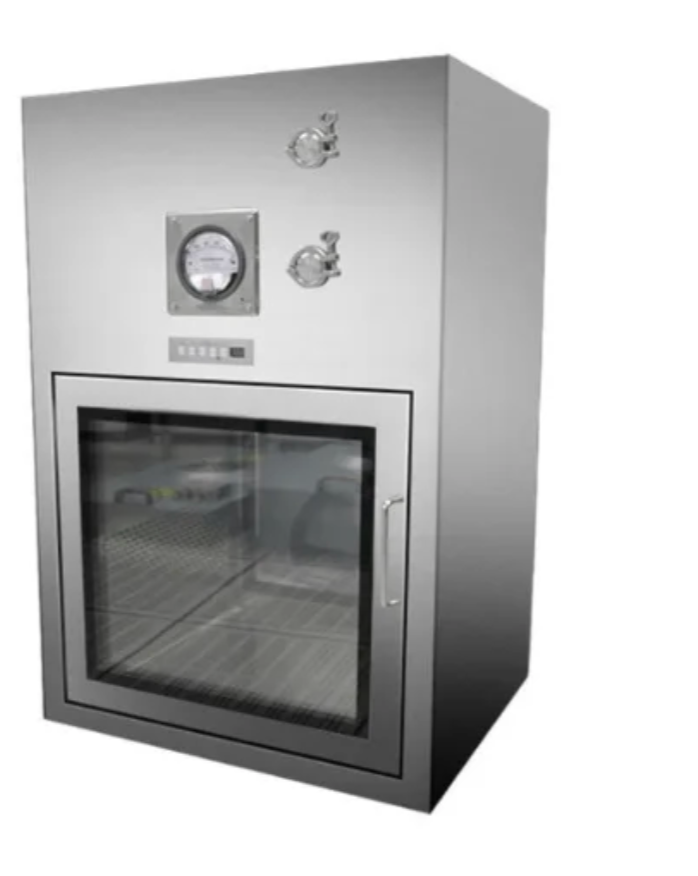

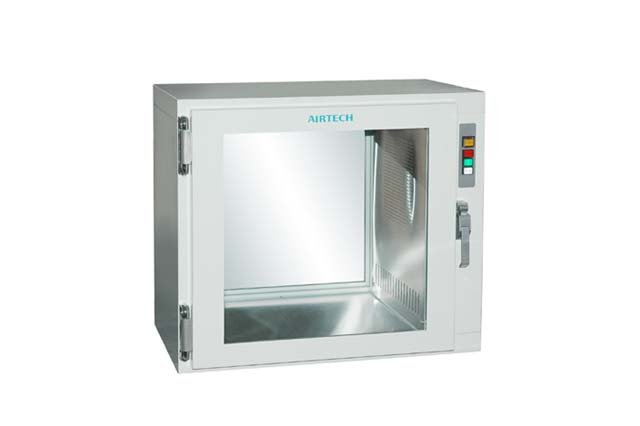

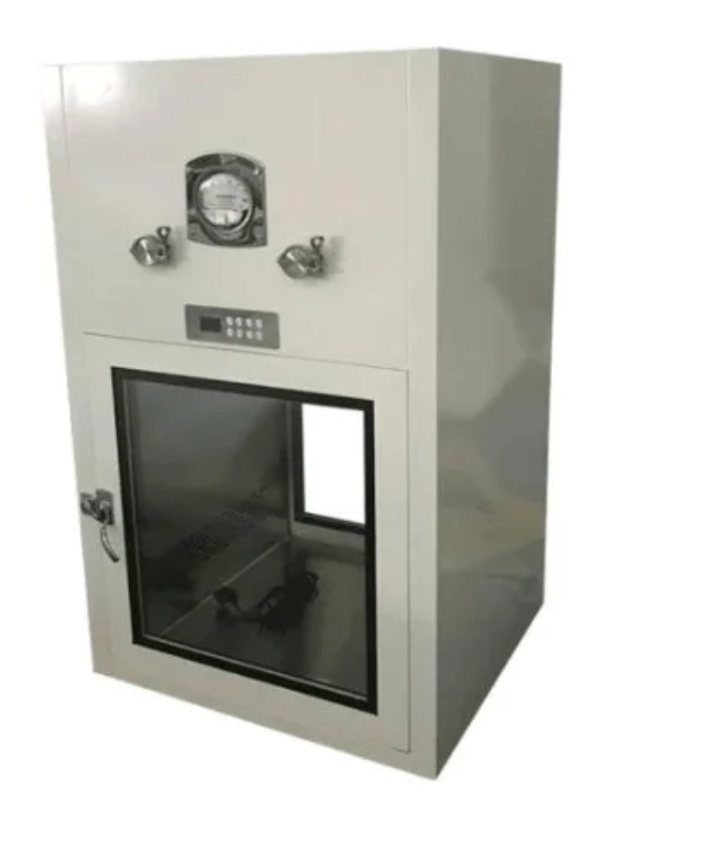

Dynamic Pass Box
Dynamic Pass Boxes ensure safe material transfer between cleanroom areas of different classifications by maintaining HEPA-filtered airflow. Designed for contamination control, they protect product integrity and comply with ISO and GMP cleanroom standards.
Description
- Provides safe transfer of materials between areas with different cleanliness levels
- Equipped with HEPA/ULPA filters for contamination control
- Maintains positive air pressure inside the chamber
- Constructed with stainless steel (SS 304/316) for durability
- Mechanical or electromagnetic interlocking door system
- Transparent viewing panel for clear visibility
- Flush-mounted, easy-to-clean design
- Complies with ISO 14644 and GMP cleanroom requirements
The Dynamic Pass Box is specially designed for transferring materials between cleanroom areas of different cleanliness levels while maintaining product protection and contamination control. Unlike static pass boxes, dynamic pass boxes use HEPA/ULPA filters and laminar airflow to ensure clean air circulation inside the chamber.
The unit is built with stainless steel (SS 304/316), providing durability, corrosion resistance, and easy cleaning. A mechanical or electromagnetic interlocking system prevents both doors from opening simultaneously, reducing the risk of cross-contamination.

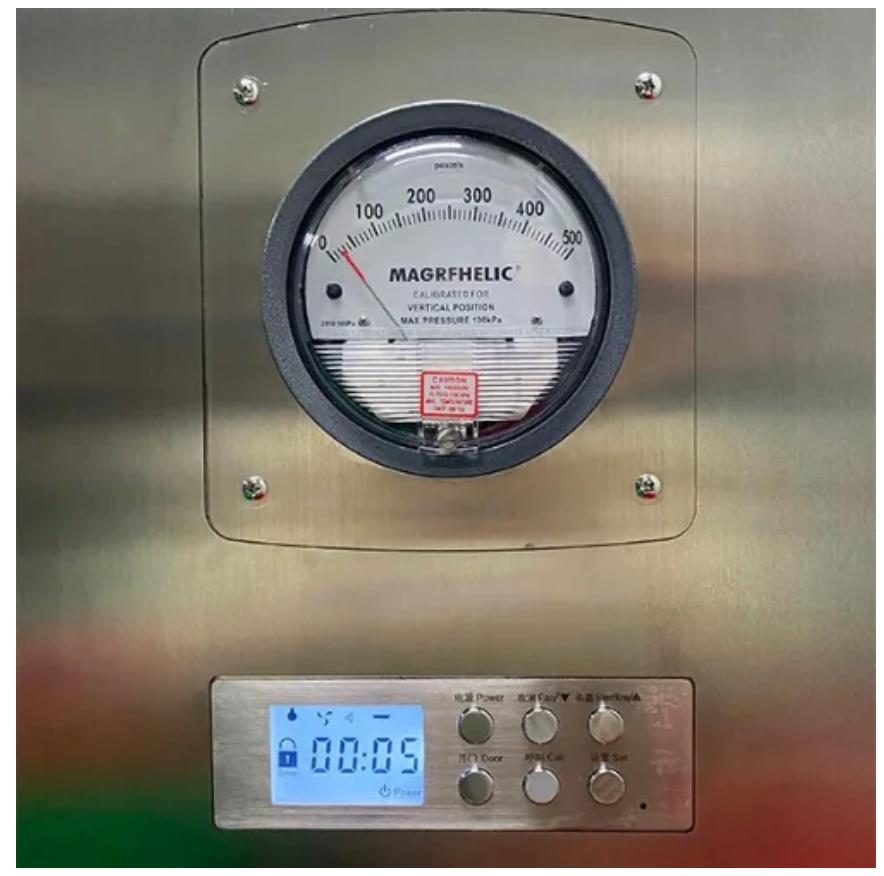

Dynamic Pass Boxes maintain a positive pressure environment inside the chamber to prevent unfiltered air from entering. With a flush-mounted, smooth-surface design and transparent viewing panels, they are suitable for pharmaceuticals, biotechnology, hospitals, and semiconductor industries.
| Parameter | Specification |
|---|---|
| Product Name | Dynamic Pass Box |
| Material | Stainless steel SS 304/316 |
| Filtration | HEPA/ULPA filters (≥99.99% efficiency at 0.3 microns) |
| Airflow | Laminar airflow with positive pressure |
| Door System | Mechanical or electromagnetic interlocking |
| Viewing Panel | Transparent glass/acrylic for visibility |
| Design | Flush-mounted, smooth surfaces, easy to clean |
| Available Sizes | Customizable (small, medium, large models) |
| Compliance | ISO 14644, GMP standards |
| Applications | Pharmaceuticals, biotechnology, hospitals, semiconductor, electronics |
